How To Show Ceiling Height In Floor Plan. Shown below, this recessed tray follows the shape of the living room allowing for a more spacious feel. A reflected ceiling plan shows a view of the room as if looking from above, through the ceiling, at a mirror installed one foot below the ceiling level, which shows the reflected image of the ceiling above.
Finalizing floor plan toss the double height ceilings or from www.houzz.com
The lower floor may show the ceiling height numerically with a dashed line indicating the perimeter of the taller space. Ad from first home builders through to luxury designs on this easy to use site Should be labelled and measured.
The Reflected Ceiling Plan Is Often Referred To As An Rcp.
How to show ceiling height in floor plan. But then future buyers will be walking around the house and see its too small as your belongings are overcrowded and will remember the too small rooms rather than the high ceiling. 0 (finished floor level), or a symbol marker can be used, see below.
For Example, A Person’s Average Height Is Around 5 Foot 5 Inches.
Ad from first home builders through to luxury designs on this easy to use site The procedure for drawing an elevation plan 1. Setup your floor plan view as needed, place on sheet.
An Area Of The Plan That Is Clear To Annotate, Can Simply Have The Word Ffl:
Ceiling heights on the main and upper floor typically range from 8 feet to over 13 feet depending on the home's design. Reflected ceiling plan (rcp) a reflected ceiling plan is a plan of the ceiling within a space. Measure your approximate height together with the ceiling height and multiply it by the number of measurements from the floor to the ceiling.
Designing For Higher Ceiling Heights Throughout A Development Allows For Maximum Flexibility With Respect To Future Use.

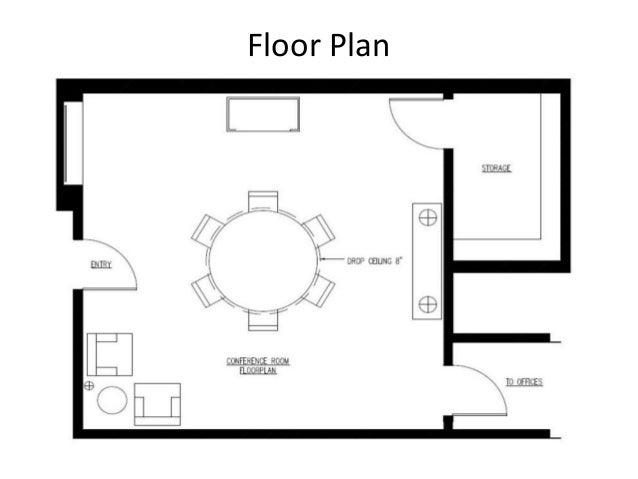

A reflected ceiling plan shows a view of the room as if looking from above, through the ceiling, at a mirror installed one foot below the ceiling level, which shows the reflected image of the ceiling above. Setup a rcp view and place on to sheet over the floor plan view you placed. Below is a design of a recessed tray ceiling.
You Will Need To Define The Plan Region Using Sketch Tool.
Edit the rcp view to turn everything off but the ceiling (leave lights and air diffusers on if necessary) if you need to work in the floor plan view, tab on the view box until it shows the right view then edit. Should be labelled and measured. The base ceiling height of the room is 10' and the dashed line of the box designates the ceiling change in height to 11' tall.
