Revit Floor Plan View Range

Revit Ceiling In A Regular Floor Plan Cadclips You.

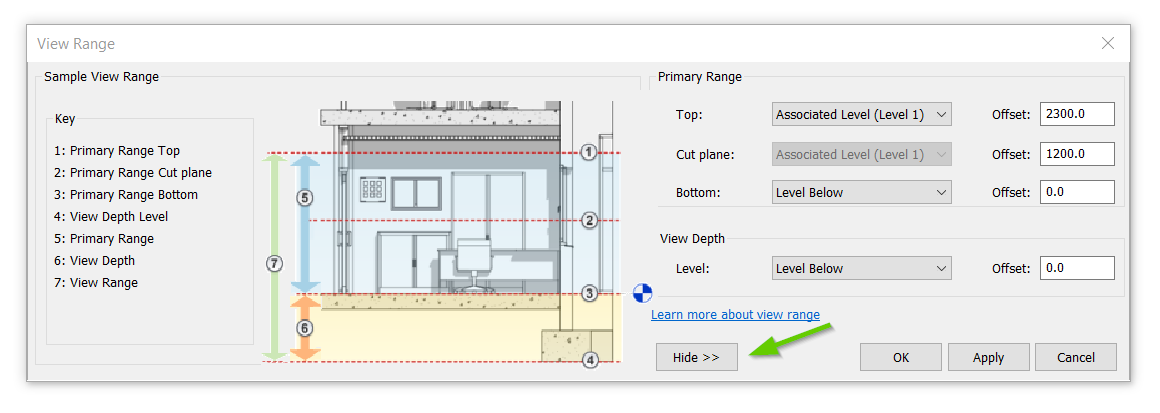

Once the floor plan or ceiling plan is open, the view range button becomes available in the properties panel (see figure 1). You can solve it by removing the view template from the view (set it to )or modify the view template. For example, i can make a floor plan view template to apply all my floor plans.

Go To The Floor Plan View And Click In The View Range Menu In The Instance Properties.

You can unhide them by right clicking on a floor, select override graphics in view >by category >surface patterns >visible. The horizontal planes are top, cut plane, and bottom. Every plan view, including reflected ceiling plans (rcp), have this property.

The Primary Range Is Defined By Three Horizontal Planes:

The view range is made up of a primary range and the view depth. Use an underlay in the view to show a level below, which will show as grey. Click apply to view changes.

Sometimes When We Change The View Range, We See Other Components Disappear From Our Floor Plan.

Go to the floor plan view and click in the view range menu in the instance properties. What is the purpose of using an underlay when creating floors or roofs? In a floor plan view, the key parameters are cut plane and bottom.

Establish Or Change The Horizontal Planes That Control An Object’s Visibility In Plan Views.

If things are visible is in many cases controlled by the settings in the visibility/graphics overrides. In the view range dialog, modify view range properties as. [view template] in revit is a collection of view properties, such as a scale of a view, detail level, discipline, view ranges, orientations, model display, and visual settings.
